Insulated Tools

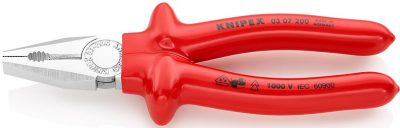

                             Knipex Combination Plier

With gripping zones for flat and round material, suitable for versatile use

With cutting edges for soft and hard wire

Long cutting edges for thicker cables

Cutting edges additionally induction hardened, cutting edge hardness approx. 60 HRC

Special tool steel, forged, multi stage oil-hardened

IEC 60900DIN EN 60900 1000 Volt rated








Knipex Insulation Stripper

For single, multiple and fine stranded conductors with plastic or rubber insulation up to 5.0 mm dia. or 10 mm² cable cross-section

Easy adjustment to the required diameter of solid or stranded wire with knurled screw and lock nut

Special tool steel, forged, oil-hardened

IEC 60900DIN EN 60900 1000 Volt rated




Knipex Electrical Installation Pliers

6 functions in one pair of pliers

Multifunctional pliers for the electrical installation; to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping end sleeves (ferrules)

Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material

Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes

Stripping holes for conductors of 0.75 – 1.5 mm² and 2.5 mm²

Crimp die for wire-end ferrules 0.5 – 2.5 mm²

Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / dia. 15 mm

Gripping, without opening the pliers completely (intelligent latching mechanism in the spring assisted version). The cutting edge remains closed and protected

Slim dimensions for easy access

Bolted joint: precise, zero backlash operation of pliers

IEC 60900DIN EN 60900 1000 Volt rated






Knipex Longnose Pliers

High loadable, elastic precision points

Half-round, long jaws

Knurled gripping surfaces

With cutting edges for medium hard wire max. dia. 3.2 mm and hard wire max. dia. 2.2 mm

Cutting edges additionally induction hardened, cutting edge hardness approx. 61 HRC

Vanadium electric steel, forged, multi stage oil-hardened

IEC 60900DIN EN 60900 1000 Volt rated




Knipex Round Nose Plier

For bending wire loops

Precision ground, short, round jaws

Smooth tips

Chrome vanadium electric steel, forged, oil-hardened

IEC 60900DIN EN 60900 1000 Volt rated

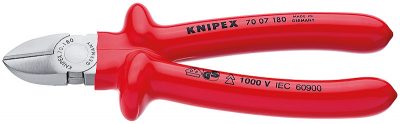

Knipex Diagonal Cutters

The indispensable diagonal cutter for all-round use

High quality material and precise workmanship for long service life

Precision cutting edges for soft and hard wire

Clean cutting of thin copper wires, also at the cutting-edge tips

Cutting edges additionally induction hardened, cutting edge hardness approx. 62 HRC

Narrow head style for use in confined areas

Vanadium electric steel, forged, multi stage oil-hardened

IEC 60900DIN EN 60900 1000 Volt rated






Knipex High Leverage Diagonal Cutters

With integrated forged axle for heaviest duty

Suitable for all types of wire including piano wire

High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio

Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC

Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened

The 250-mm-long diagonal cutter is suitable for copper conductors up to 16 mm² and aluminium conductors up to 35 mm²

IEC 60900DIN EN 60900 1000 Volt rated




Knipex Alligator Water Pump Pliers

Adjustment by shifting one jaw directly on to the workpiece: fast, reliable and comfortable handling

Opening at the touch of a button apart from the workpiece

Fine adjustment to fit very different workpiece sizes with a comfortable handle position

Good access to the workpiece due to slim size of head and joint area

Self-locking on pipes and nuts: no slipping on the workpiece and low handforce required

Gripping surfaces with special hardened teeth, teeth hardness approx. 61 HRC: high wear resistance and stable gripping

Box-joint design for high stability due to double guide

Guard prevents operators’ fingers being pinched

Chrome vanadium electric steel, forged, multi stage oil-hardened

IEC 60900DIN EN 60900 1000 Volt rated




Knipex Cable Shears

For cutting copper and aluminium single conductors as well as multiple stranded cables

Not suitable for steel wire and hard drawn copper conductors

Precision ground, hardened blades

Clean and smooth cut without crushing and deformation

Easy cutting with one-hand operation

Guard prevents operators’ fingers being pinched

Adjustable bolted joint, self-retaining screw

High-grade special tool steel, forged, oil-hardened

IEC 60900DIN EN 60900 1000 Volt rated

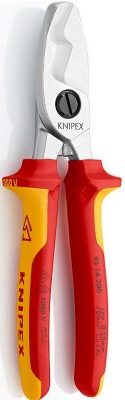

Knipex Cable Shears with twin cutting edge

For cutting copper and aluminium cables

Not suitable for steel wire and hard drawn copper conductors

Precision ground, hardened blades

Clean and smooth cut without crushing and deformation

Easy cutting with one-hand operation

Initial and final cut (upper and lower blade) allows cables of up to 20 mm dia. to be cut

Low handforce required due to favourable lever ratio and special blade geometry

Guard prevents operators’ fingers being pinched

Adjustable bolted joint, self-retaining screw

High-grade special tool steel, forged, oil-hardened

IEC 60900DIN EN 60900 1000 Volt rated




Knipex Cable Cutters (ratchet action)

Cuts through steel wire armoured cables with a diameter of up to 45 mm / 380 mm² (e.g. 4 x 95 mm²) using one or two-handed operation

Sturdy. Easy to use. Stable.

Simple handling due to low weight (800 g) and compact design (315 mm length) – can also be used in confined areas

Precision ground blades and induction hardened cutting edges cut smoothly and neatly without crushing

Innovative high leverage three-stage ratchet-drive

Support area for putting down the pliers when cutting

Not suitable for cutting ACSR cable and wire rope!

High-grade special tool steel, forged, multi stage oil-hardened

IEC 60900DIN EN 60900 1000 Volt rated




Knipex Adjustable Wrench

Parallel smooth gripping jaws

Continuously variable gripping width

With scaling for presetting the width apart from the workpiece

Chrome Vanadium steel

IEC 60900DIN EN 60900 1000 Volt rated




Knipex Nut Drivers

Ergonomically optimised dual component handle for fatigue reduced work and optimum transmission of force

Handle design prevents rolling

Chrome vanadium molybdenum steel

Sizes 4mm to 13mm

IEC 60900DIN EN 60900 1000 Volt rated






Wiha Softfinish Electric Slimfix

6 Piece Phillips and Slotted screwdriver set

Tapered insulation for fitting into tight screw recesses

1x Screwdriver SoftFinish® electric slimFix , Slotted: 3,5

1x Screwdriver SoftFinish® electric slimFix , Slotted: 4,5

1x Screwdriver SoftFinish® electric slimFix , Slotted: 5,5

1x Screwdriver SoftFinish® electric slimFix , Slotted: 6,5

1x Screwdriver SoftFinish® electric slimFix , Phillips: PH1

1x Screwdriver SoftFinish® electric slimFix , Phillips: PH2

IEC 60900DIN EN 60900 1000 Volt rated






Wiha Liftup Screwdriver with bit magazine

6 Piece Phillips and Slotted screwdriver set

Tapered insulation for fitting into tight screw recesses

1x Bit slimBit electric , Slotted: 2,5 , Bit length: 75

1x Bit slimBit electric , Slotted: 3,0 , Bit length: 75

1x Bit slimBit electric , Slotted: 4,0 , Bit length: 75

1x Bit slimBit electric , Slotted: 5,5 , Bit length: 75

1x Bit slimBit electric , Phillips: PH1 , Bit length: 75

1x Bit slimBit electric , Phillips: PH2 , Bit length: 75

IEC 60900DIN EN 60900 1000 Volt rated

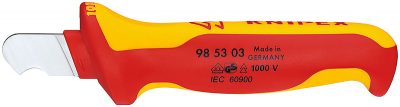

Knipex Cable Knife

Ergonomically improved handle shape with comfortable slip guard

Particularly confident grip thanks to slip-proof soft components

Thumb recess and "finger hook" at the end of the handle ensure a good transmission of force when the blade is pulled

Solid, fixed straight blade

Transparent protective cap

Blade: special tool steel, oil-hardened

Back of the blade plastic coated to avoid short circuits

IEC 60900DIN EN 60900 1000 Volt rated








Knipex Reversible Rachet & Hexagon Sockets

Reversible Rachet

For use with sockets

Reversible for clockwise and anti-clockwise directions

Extremely smooth action

Quick, easy and reliable locking of attached sockets

Chrome vanadium steel, forged

Hexagon Sockets

For metric hexagonal head screws

Basic tool chrome plated

Chrome Vanadium steel

Sizes from 10mm to 27mm






Knipex Open-end Wrench

Sizes 7 to 27mm

Sizes 1/4" to 3/4"

Jaw 15° angled

Basic tool chrome plated

Chrome vanadium steel, forged, oil-hardened

IEC 60900DIN EN 60900 1000 Volt rated




Knipex Box Wrench

Sizes 7 to 24mm

Cranked

Basic tool chrome plated

Chrome vanadium steel, forged, oil-hardened

IEC 60900DIN EN 60900 1000 Volt rated




Knipex Electrician's gloves

Certified IEC 60903DIN EN 60903

1000 Volt insulated gloves




Knipex Insulated Mat made from rubber

Certified DIN/EN IEC 61112

1000 Volt insulated matting

sizes : 500 x 500 ; 1000 x 1000 & 10,000 x 1000






Please note that this is only a fraction of our catalogue, should you not find the item that you are looking for then we would be glad to help you with your application needs
